Products > IP68 LED Tunnel Lights > HIGHPOWER PHILIPS LUMILEDS LUXEON TX

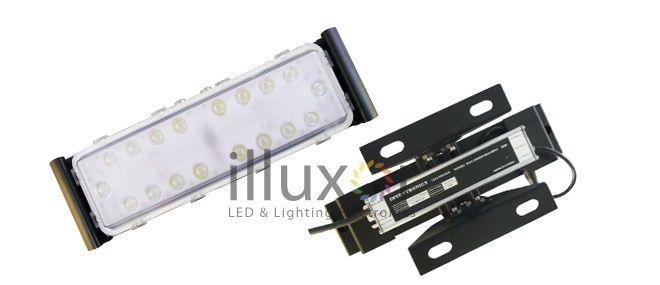

illuxor LED IP68 Industrial Light

CE & RoHS

IP68 Modular LED Lighting
Modules

LED POWER

Driveing Current (mA) Flux (lm)

Beam Angle

Dimensions
l*w*h KG
1 18

40W

50W

60W

700

860

1050

4000±5%

4750±5%

5400±5%

25°, 40°, 60°, 90°, Bat Wing, Iso Brightness


2 36

80W

100W

120W

700

860

1050

8000±5%

9500±5%

10800±5%

25°, 40°, 60°, 90°, Bat Wing, Iso Brightness


3 54

120W

150W

180W

700

860

1050

12000±5%

14250±5%

16200±5%

25°, 40°, 60°, 90°, Bat Wing, Iso Brightness


4 72

160W

200W

700

860

16000±5%

19000±5%

25°, 40°, 60°, 90°, Bat Wing, Iso Brightness


5 90

200W

250W

700

860

20000±5%

23750±5%

25°, 40°, 60°, 90°, Bat Wing, Iso Brightness


6 108

240W

300W

700

860

24000±5%

28500±5%

25°, 40°, 60°, 90°, Bat Wing, Iso Brightness


7 126

280W

350W

700

860

28000±5%

33250±5%

25°, 40°, 60°, 90°, Bat Wing, Iso Brightness



Product Details

  • Lighting Source: PHILIPS Lumileds LUXEON TX, PHILIPS Lumileds Luxeon 3030
  • Input voltage: AC 100-277 V
  • Light Distribution Curve: 25, 40, 60, 90, Bat Wing, Iso Brightness
  • Peak lighting Angle: 120 degree
  • Color Temperature: 3000K, 4000K, 5000K, 5700K
  • CRI: Minimum 70
  • Working environment:-40ºC to 50ºC; 10% -90%RH
  • Life Span: 50,000 hours
  • Warranty: 2 years replacement
  • Body and shell materials: Aluminum alloy
  • Protection Grade: LED Driver: IP67; LED Module: IP68
  • Surge Voltage: 10kV
  • Installation size: Φ60mm



Features

  • PHILIPS Lumileds LEDs, flip chip technology, single unit's demage won't affect others working;
  • Honeycomb briquette effect heat dissipation princible, best thermal management system;
  • Designed to last at least 60.000 hours at L70;
  • Multiple lighting distributions available;
  • IP68 modules: highest waterproof level, hot-pluggable, easy for installation and replacement;
    Aluminum housing; Multiple housing colors: black, white, grey, blue;
    Easy tool onsite maintenance and repair;
    5-year limited warranty;
