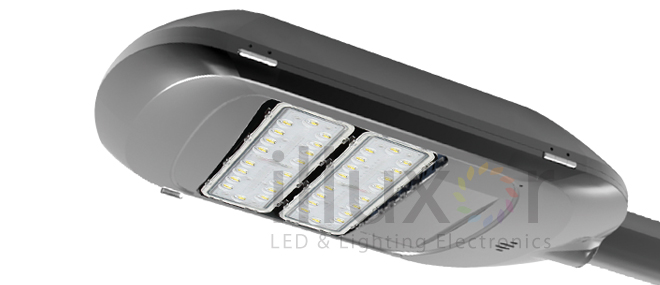

IP68 Modular LED Lighting

Modules	LED POWER		Driveing Current (mA)	Flux (lm)	Beam Angle	Dimensions
						l*w*h	KG
1	18	40W 50W 60W	700 860 1050	4000±5% 4750±5% 5400±5%	25°, 40°, 60°, 90°, Bat Wing, Iso Brightness
2	36	80W 100W 120W	700 860 1050	8000±5% 9500±5% 10800±5%	25°, 40°, 60°, 90°, Bat Wing, Iso Brightness

Product Details

• Lighting Source: PHILIPS Lumileds LUXEON TX, PHILIPS Lumileds Luxeon 3030
• Input voltage: AC 100-277 V
• Light Distribution Curve: 25, 40, 60, 90, Bat Wing, Iso Brightness
• Peak lighting Angle: 120 degree
• Color Temperature: 3000K, 4000K, 5000K, 5700K
• CRI: Minimum 70
• Working environment:-40ºC to 50ºC; 10% -90%RH
• Life Span: 50,000 hours
• Warranty: 2 years replacement
• Body and shell materials: Aluminum alloy
• Protection Grade: LED Driver: IP67; LED Module: IP68
• Surge Voltage: 10kV
• Installation size: Φ60mm



Features

• PHILIPS Lumileds LEDs, flip chip technology, single unit's demage won't affect others working;
• Honeycomb briquette effect heat dissipation princible, best thermal management system;
• Designed to last at least 60.000 hours at L70;
• Multiple lighting distributions available;
• IP68 modules: highest waterproof level, hot-pluggable, easy for installation and replacement;
  Aluminum housing; Multiple housing colors: black, white, grey, blue;
  Easy tool onsite maintenance and repair;
  5-year limited warranty;
